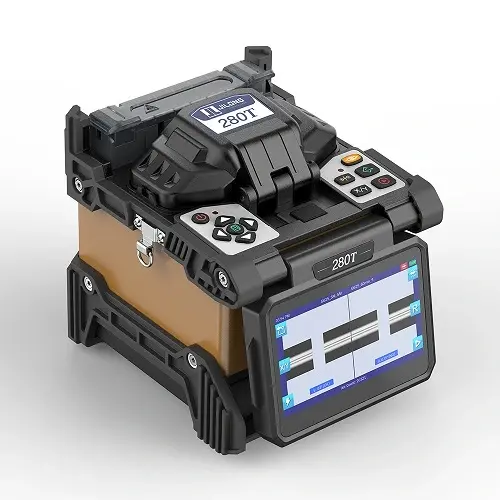

Jilong 280T All-Rounder Middle Trunk Line Fusion Splicer
- Model#
- JL-280T
- Brand
- Jilong
- Category
- Network Testing Tools
- Sub Category
- Fusion Splicer Machine
- Warranty
- 2 Year
- Service
- 3 Year
* বর্তমানে আইটি পণ্যের দাম স্থিতিশীল না থাকায়, ওয়েবসাইটে দেয়া পণ্যের মূল্য বাড়তে পারে। *
How To Order: Over Phone, Email or Checkout in website, We Will Contact You Soon.
The Jilong 280T All-Rounder Middle Trunk Line Fusion Splicer is a specialized device used in the fiber optic industry for splicing optical fibers. This tool is designed for joining two optical fibers together, enabling signal transmission across long distances with minimal loss. The "middle trunk line" part of its name refers to its application for splicing main trunk lines in fiber optic networks, which are typically large-scale, high-capacity fiber links that form the backbone of communication infrastructure.
Technical Specification:
|
Alignment
method |
Core Alignment |
|
Applicable
fiber type |
SM(ITU-T
G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
|
Compatible Fiber/Cable |
0.25~3.0 mm
/ Rubber-insulated fiber cable |
|

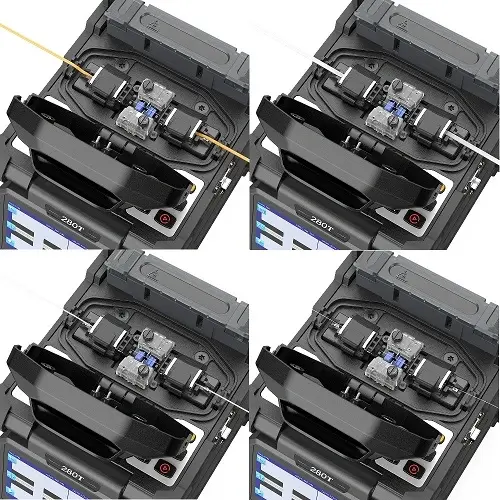

Fiber Holder |
Replaceable universal fiber holder |
|
Fiber
Diameter |
Cladding:80-150µm,
Coating: 100-1000µm |
|
Fiber Cleave Length |
8-16 mm |
|
Splicing
mode |
Max 128
modes |
|
Typical Splice Loss |
SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB /
G.657: 0.02dB |
|
Return Loss |
>>60dB |
|
Splicing Time |
SM Quick mode: 8 sec/ SM Average: 15 sec |
|
Estimated Splice Loss |
Available |
|
Heating Time |
Quick mode 18 sec.(SM G652 250µm 40mm Sleeve)
adjustable |
|
Protection Sleeve Length |
20mm, 30mm,
40mm, 50mm, 60mm |
|
Heat Programs |
Max 32 modes |
|

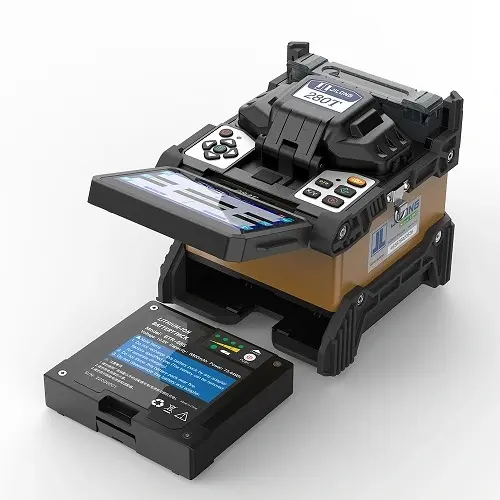

Battery |
6800mAh
Battery Capacity, Typical 300 Cycles (Splice & Heat) per Charge |
|
Electrode Life |
5000 arcs, can be extended by using an electrode
grinder |
|
Auto-start |
Splice /
Heating |
|
Automatic Fiber Identification |
/ |
|
Automatic ARC Identification |
Automatic
arc calibration by air pressure and temperature |
|
Results Storage |
The last 10,000 splice records and 2,000 result images |
|
Tension Test |
1.96~2.25N |
|
Operating Condition |
Altitude: 0~5000m, 0~95% relative humidity, -20~50°C,
Max Wind 15m/s |
|
Storage Condition |
0~95%
relative humidity, -20~60°C |
|

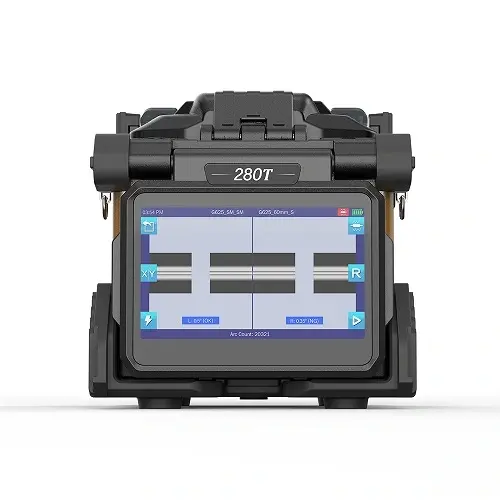

Display |
4.3-Inch capacitive touch screen |
|
Fiber Magnification |
X, Y, XY,
X/Y : 320X Magnification |
|
Power Supply |
AC Input 100-240V, DC Input 9-14V |
|
Terminal |
USB2.0 |
|
Weigh |
1.6kg without battery / 1.9kg with battery |
|
Size |
143H x 136W
x 155D mm (including rubber bumper) |
