Corelink 2-Port EPON OLT
- Model#
- CW2P2P
- Brand
- CoreLink
- Category
- FTTX Product
- Sub Category
- EPON OLT
- Warranty
- 1 Year
- Service
- 2 Year
* বর্তমানে আইটি পণ্যের দাম স্থিতিশীল না থাকায়, ওয়েবসাইটে দেয়া পণ্যের মূল্য বাড়তে পারে। *
How To Order: Over Phone, Email or Checkout in website, We Will Contact You Soon.
Corelink 2-Port EPON OLT | 1:128 ONU Support | Dual Power | FTTX & Fiber Network Solution
Description:
The Corelink 2-Port EPON OLT is a high-performance, compact Optical Line Terminal designed for modern fiber access networks. Ideal for town and village fiber deployments, surveillance networks, and FTTX solutions, it supports IP phone services, high-speed data, IPTV, and other IP-based transmissions. With 2 PON ports, 2 SFP uplink ports, and 4 Gigabit LAN ports, it offers a powerful, scalable solution with easy management via WEB and SNMP.
Key Features:
-
Equipped with 2 SFP PON ports, 2 1000M SFP ports, and 4 1000M LAN uplink ports
-
Each PON port supports a 1:64 split ratio, enabling access to up to 128 ONUs per port (total 256 ONUs)
-
Transmission distance up to 20km under a 1:32 split configuration
-
Compatible with both EPON and XPON ONUs for flexible network setups
-
Integrated switching functionality with support for WEB and SNMP management
-
Built-in dual cooling fans for efficient heat dissipation and enhanced reliability
-

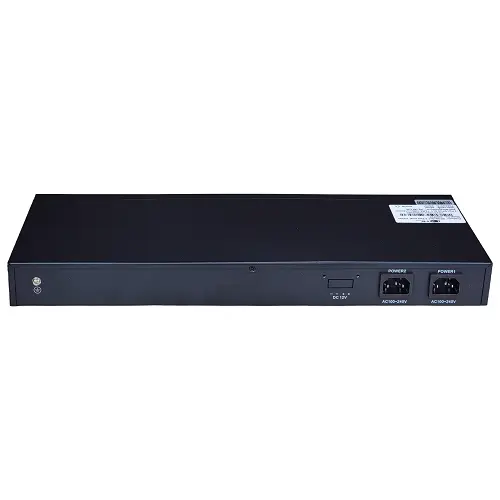

Dual power supply design for uninterrupted operation
-
Uplink 1 is dedicated to PON1, and Uplink 2 is dedicated to PON2 — uplink ports are isolated for secure and efficient data handling
Applications:
-
Town and village fiber network deployments
-
Surveillance and security system networking
-
FTTX networks for delivering IP phone, high-speed internet, IPTV, and more
-
Passive optical network (PON) infrastructures requiring high reliability and scalability
Technical Specification
|
Parameter |
Specification |
|
Operating wavelength |
1310(RX) /1490(TX) |
|
Optical power |
+2.5 ~ +7dBm |
|
Receiving sensitivity |
-30dBm |
|
Max distance |
20km |
|
Max splitter ratio |
1:64 |
|
Capacity |
2 PON, maximum 128pcs ONU |
|
MAC |
8k |
|
Uplink port |
2 1000M SFP ports + 4 1000M LAN RJ45 ports |
|
PON port |
2 SFP 1000M fiber ports |
|
Control port |
1 10/100M MGMT NMS RJ45 port; |
|
MTBF |
100,000 hours |
|
EPON traits |
Support IEEE802.3ah |
|
Support DBA with minimum1Kbps granularity adjustable |
|
|
Support 1Gbps up link and down link symmetrical bandwidth |
|
|
Support AES-128 encryption to each Logical Link Identifier |
|
|
Support powerful OAM function, implement telnet management,
maintenance and upgrade |
|
|
Support auto discovery and auto register of ONU (real-time
operation) |
|
|
Other functions |
Support IGMPv1/v2, IGMP Snooping and IGMP Proxy |
|
Protocols supported |
Support IEEE802.3、IEEE802.3u、IEEE802.3ab、IEEE802.3z |
|
Support IEEE802.1Q VLAN、IEEE802.1d Spanning Tree |
|
|
Support IEEE 802.1P QoS、IEEE802.3X Flow Control |
|
|
Support IEEE802.3ad Trunk、IEEE802.1W RSTP |
|
|
Network management |
Support GUI management based on SNMP |
|
Support WEB/CLI, Support inband and outband management |
Working Environment
|
Parameter |
Specification |
|
Power |
AC100~240V 50/60HZ |
|
Power Consumption |
12W |
|
Operating temperature |
-10—55 ℃ |
|
Storage temperature |
-40—80 ℃ |
|
Humidity |
5%--90% non-condensing |
|
Dimension |
276mm(length) * 200mm(width) * 44mm(height) |
